Kubernetes documentation

Technical stack

Container orchestration: Micro K8S
Gest OS for K8S: Ubuntu ARM64

Requirements

All container and your software inside need to be compiled on ARM64 architecture
A ARM64 VM
A DNS and a Let's Encrypt configuration

Installation

I wanted to find hosting based on ARM64 for both financial and ecological reasons. After some research, I decided to go with Hetzner for my VM order, as it was the cheapest option I found with hosting in Europe. I absolutely wanted a container orchestration based on K8S. I could have opted for a managed K8S service in a public cloud like AWS, but the exorbitant price quickly discouraged me. Therefore, I decided to use Micro K8S, which is compatible with ARM64. For the installation, I simply followed the official documentation.

List of addon to enable:

cert-manager # (core) Cloud native certificate management
community # (core) The community addons repository
dashboard # (core) The Kubernetes dashboard
dns # (core) CoreDNS
ha-cluster # (core) Configure high availability on the current node
helm # (core) Helm - the package manager for Kubernetes
helm3 # (core) Helm 3 - the package manager for Kubernetes
hostpath-storage # (core) Storage class; allocates storage from host directory
ingress # (core) Ingress controller for external access
metrics-server # (core) K8s Metrics Server for API access to service metrics
observability # (core) A lightweight observability stack for logs, traces and metrics
registry # (core) Private image registry exposed on localhost:32000
storage # (core) Alias to hostpath-storage add-on, deprecated

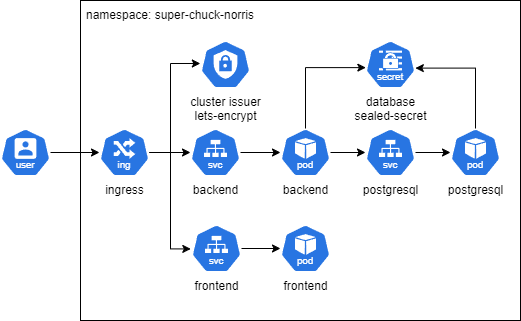

Architecture Diagram

Alt docker

The namespace needs to be set to "chuck-norris" due to the sealed secret. The database dump needs to be injected manually through a port redirection and psql.

Port forwarding and inject dump:

kubectl port-forward -n chuck-norris <postgres-pod-name> 5432:5432
psql -h localhost -p 5432 -U postgres -d chuck-db < /path/to/dump.sql
